AEGIS®- Shaft Grounding Ring Protecting Your Motor Bearings from Electrical Failure
Interpole Arabia: Your Sole Distributor in the GCC.
Interpole Arabia is proud to announce that we are the sole distributor of AEGIS® Shaft Grounding Rings in the GCC region. Our partnership ensures that our customers have access to the best-in-class bearing protection solutions to enhance the reliability and performance of their motors.

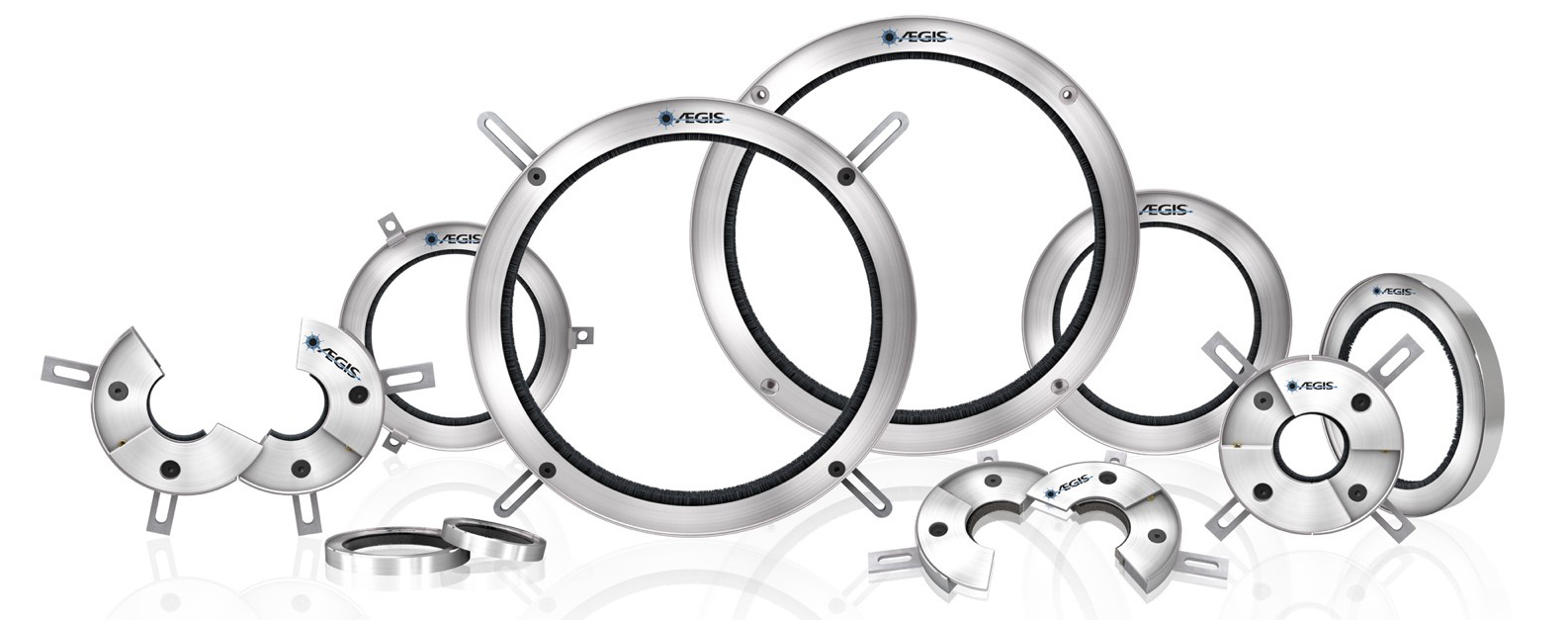

What is the Aegis Ring?
The AEGIS® Shaft Grounding Ring is an innovative solution designed to protect motor bearings from electrical discharge machining (EDM) damage even if the bearing is Insulated. These discharges are caused by variable frequency drives (VFDs) which can generate harmful shaft voltages leading to pitting, frosting, and fluting damage of bearing, resulting in costly downtime and repairs. The AEGIS® Ring effectively prevents these issues by providing a reliable path to ground for shaft voltages.

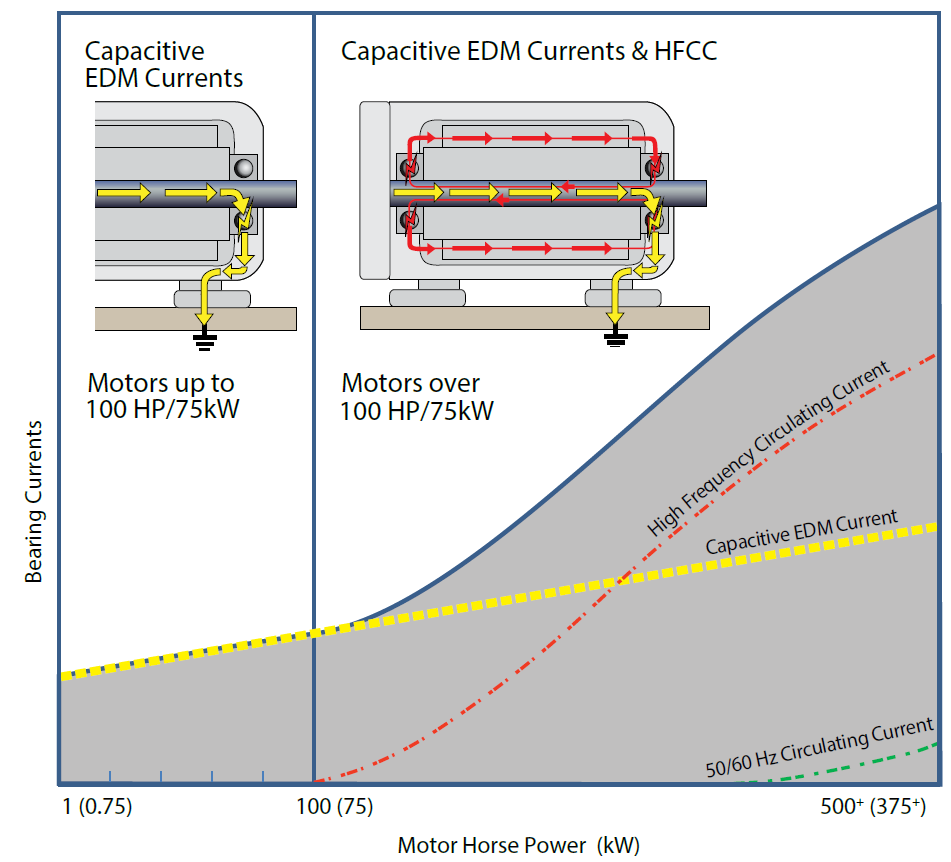

Root Causes – Bearing Currents
Aegis Ring protects your bearing from Yellow Current (EDM)to prevent Electrical failure as shown in the above picture.
BEST PRACTICES:
New bearings MUST be installed with AEGIS® Shaft Grounding Rings.
- Motors up to 75 kW: AEGIS® SGR on DE or NDE
- Motors above 75 kW: AEGIS® SGR (DE) and bearing insulation (NDE)
- Motors above 375 kW: AEGIS® PRO Series (DE) and bearing insulation (NDE)
Key Features & Benefits of the AEGIS® Shaft Grounding Ring
- Increased Motor Life: Protects bearings from EDM damage, thereby extending the lifespan of motors.
- Reduced Downtime: Minimizes unexpected motor failures and maintenance costs.
- Enhanced Reliability:Ensures consistent performance and operation of motors driven by VFDs.
- Comprehensive Protection:Suitable for all motor types, including low voltage, medium voltage, and DC motors.
- Durable Construction:Made from high-quality materials, the AEGIS® Ring is built to withstand harsh industrial environments.
- Universal Fit:Available in various sizes, the ring can be installed on virtually any motor shaft, making it a versatile solution for different applications.
- Maintenance-Free:Once installed, the AEGIS® Ring requires minimal maintenance, providing long-term protection without the need for frequent inspections or adjustments.
- Cost-Effective:By preventing bearing damage and extending motor life, the AEGIS® Ring reduces maintenance costs and downtime, offering significant savings over the motor’s lifespan.
Product Specifications
- Dimensions:Available in various sizes to fit different motor shaft diameters.
- Installation:Simple and straightforward installation process with detailed guidelines provided.
- Warranty:Backed by a 2-year extended warranty against bearing fluting damage when installed with new bearings as per recommended practices.
Installation Guidelines
- Preparation:Ensure the motor shaft and housing are clean and free of contaminants.
- Sizing:Select the correct size ring for your motor shaft.
- Mounting:Follow the detailed installation steps provided in the AEGIS® Bearing Protection Handbook for optimal results.
Precautions
- Proper Grounding:Ensure the motor and the ring are properly grounded to avoid any potential issues.
- Regular Inspection:Periodically inspect the ring and motor bearings to ensure they are functioning correctly.
- Safety:Follow all workplace safety policies and procedures during installation and maintenance.
Warranty and Registration
The AEGIS® Shaft Grounding Ring comes with a 2-year extended warranty when registered and installed according to the AEGIS® recommended best practices. To register your motor and ensure your warranty coverage, please visit AEGIS Warranty Registration.
For more detailed information on the AEGIS® Shaft Grounding Ring, please refer to the AEGIS Bearing Protection Handbook.
Contact Us
For more information or to purchase the AEGIS® Shaft Grounding Ring, visit Interpole Arabia or contact our customer service team. Protect your motors with the AEGIS® Shaft Grounding Ring, your trusted solution for bearing protection.
