MOTOR TESTING EQUIPMENT
Interpole Arabia Company LLC is authorized distributor for Motor Testing Equipment of following of Electrom Instrument (Made in USA) for Kingdom Saudi Arabia.
Electrom Instrument (USA): - most advanced electric motor tester and winding analyzer.
Electrom instruments are used for diagnosis of problems, quality assurance, motor reliability programs, and various maintenance programs. It provides state- of- the- art test solutions that are easy- to- use. This Instrument can be used by
- Motor, Alternator Services repairs & maintenance service provider
- Motor, Generator, Coil Manufacturing Companies & OEM
- And Manufacturing Industries
Electrom Instrument Products can be classified into following:
- iTIG – Surge Winding and Analyzer ( 4 Different Models)
- Power Pack - High Voltage Motor Tester for iTIG
- iTIG Motor Test Accessories – Instrument Add ons
Find More Faults With One Instrument
iTIG - MODELS AND CONFIGURATION
There are 4 Models under which iTIG Motor testing product can be classified. The classification of the product is mainly done on the basis of output voltage and different types of test which can be performed along with some additional features. Although the output voltage can be increased by using Power Pack.
The iTIG features over 20 high- and low- voltage tests including high frequency surge and partial discharge. You can choose multiple tests to run automatically in a sequence or select single tests and report your results with the easiest to use instrument available. You can also operate manually for voltage dial or set up for automatic operation.

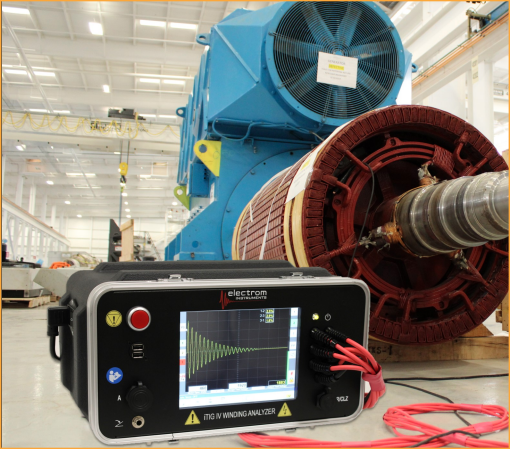

One can carry the iTIG in the field or use it as a benchtop device. Connect to an external portable power pack for testing up to 40kV. The iTIG is the most versatile and easy- to- use tester available.
iTIG A - Model A is designed for those who need a basic tester for insulation resistance (mega ohm), DC hipot, and surge tests.
iTIG B - Model B adds reporting capability and a milliohm (mΩ) winding resistance measurement to basic model A features. Additional model B options include impedance/inductance testing, advanced multi- coil tests, reporting, and partial discharge testing.
iTIG C - Model C adds automatic IR and Hipot tests to features available in models A- B. Additional model C options include micro ohm winding resistance measurement, impedance/inductance testing, advanced multi- coil tests, and partial discharge testing.
iTIG D - Model D has fully automatic testing capability. This means that for 3- phase motors or coils, all tests, or a user selected set of tests, from low voltage impedance and resistance measurements to a variety of IR, DC hipot, surge, and partial discharge tests can be done in a fully automatic sequence by the tester.
Advanced multi- coil tests and micro ohm winding resistance measurement comes standard with the iTIG model D. Model D optional features include CLZ (capacitance, inductance, and impedance) measurements, partial discharge tests, and PLTA production line test automation software. All models can test DC motors. There are a variety of accessories available for DC motor testing.
PRODUCTION Line Test Automation (PLTA Solutions)
Electrom’s Production Line Test Automation (PLTA) solutions come in a range of systems for every budget. Automate your QA testing program with a single instrument that seamlessly integrates with your production line. Options such as bar code scanning, external controls, and automatic uploading of test results make the iTIG the most cost- effective solution for developers, manufactures, and OEMs.
Manufacturers of electric motors, generators, alternators, and coils can rely on the iTIG for quality assurance and new technology development on the production floor or in the R&D lab.
The iTIG is easy to use and features over 20 high- and low- voltage tests and measurements.Options for automation, reporting, data import and export, and other advanced systems are flexible.
