POWER PACK (18kV – 40kV)
The Electrom Power Pack is a portable high voltage motor tester that connects to any iTIG series model with low voltage cables. The Power Pack has its own high voltage output lead for use with all high voltage tests with an additional ground lead for the motor frame. The Power Pack switches automatically between Hipot and Surge tests.
The iTIG screen is used to select the test to be made. The Power Pack sends test data to the iTIG, which processes, stores, and displays the results.
Results from all the tests done on a motor, whether from using the iTIG or the Power Pack, are automatically combined in one test report.

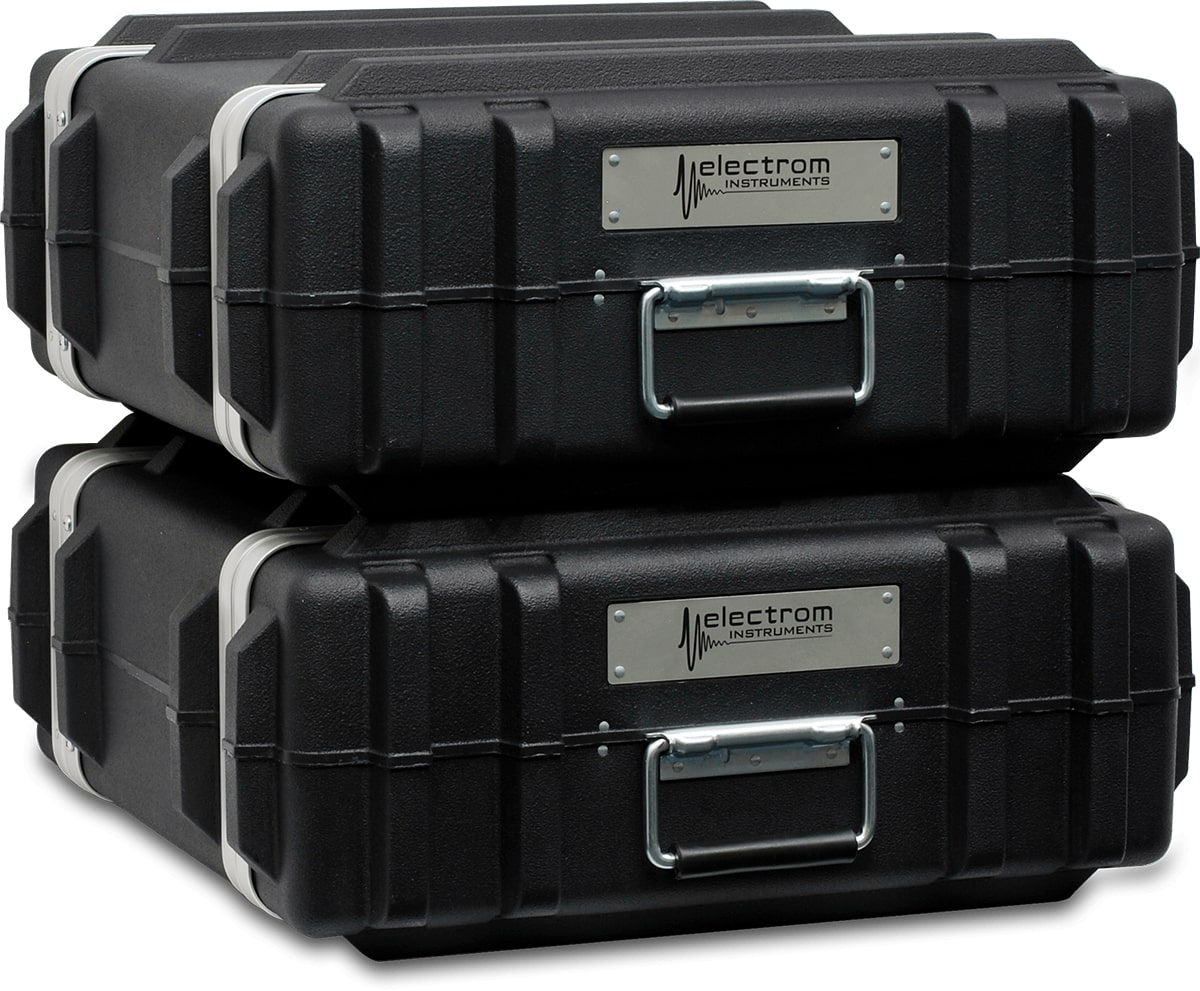

Power Pack testers are housed in the same size case as the iTIG and each weigh less than 50lbs / 23kg (18kV – 30kV) ensuring Portability. Despite the small size and low weight the Power Pack still produces surge test output energy of 45 J at 30kV with a discharge capacitance of 100nF.
Power Pack Voltage Range:
• 18kV/24kV/30kV/40kV
Optional Shipping Case

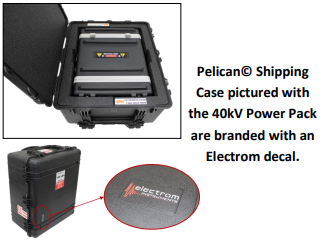

Ship instruments and power packs in an optional custom Pelican® case. Custom foam inserts protect the contents. A branded decal let’s you know what’s inside. Roller wheels and an extendable handle make transport easy and convenient.
Independent Calibration
The Power Pack high voltage motor tester is calibrated independently of the iTIG. It can be added to an iTIG at any time without the tester coming back to the factory. It can also be used with multiple iTIGs, a big cost saving for companies with multiple iTIG motor testers.
iTIG Power Pack Specifications
Power Pack 18kV-30kV
- Dimensions (cm): 54 x 23 x 55 cm
- Dimensions (in): 21 x 9 x 22 in.
- Weight (lbs): 49 lbs.
- Weight (kg) 22 kg
- Max Output Voltage: 18 kV, 24 kV, or 30 kV
- Pulse Repetition Rate: 5 Hz
- Surge Voltage Accuracy: 10%
- Discharge Capacitance: 100 nF
- Max Surge Pulse Energy: 16 J, 29 J, or 45 J
- Max Output Voltage:* 18 kV, 24 kV, or 30 kV
- Voltage Accuracy:* 2%
- Current Resolution: 0.01 µA
- Current Accuracy: 2%
- Current Trip-out: 10-2,000 µA
- Input Power (VAC): 100-240
- Fuse Size (250V): 5A
*Use the iTIG for test voltages up to the instrument’s max voltage before using Power Pack.
Power Pack 40kV
- Dimensions (cm): 54 x 28 x 66 cm
- Dimensions (in.): 21 x 11 x 26 in.
- Weight (lbs.): 83 lbs.
- Weight (kg): 37 kg
- Max Output Voltage: 40 kV
- Pulse Repetition Rate: 2.5 Hz
- Surge Voltage Accuracy: 10%
- Discharge Capacitance: 150 nF
- Max Surge Pulse Energy: 120 J
- Max Output Voltage:* 40 kV
- Voltage Accuracy:* 2%
- Current Resolution: 0.01 µA
- Current Accuracy: 2%
- Current Trip-out: 10-2,000 µA
- Input Power (VAC): 100-240
- Fuse Size (250V): 5A
*Use the iTIG for test voltages up to the instrument’s max voltage before using Power Pack.
